| System Size: 178W x 125D x 52.7H (mm) |
| Intel Core i3-7100U Processor |
| Dual Channel DDR4, 2 x SO-DIMMs |
| HDMI, Display port for Dual display |
| 2 x GbE LAN ports |
| Embedded & Industrial Applications |
| IoT System |
| Factory Automation |
| KIOSK / POS |
| Healthcare |
is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces
the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized
chassis enhanced the ability to work in harsh environment. The Compact size can easily
be designed in any applications in limited space, such as factory automation, industrial
controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing
solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-KBLB7100H-B1 is powered by Intel® Core™ i3-7100U processor, to support DDR4 2133MHz up to 32G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard. It's available with rich features of both HDMI & DP outputs, 3 x COM ports, 1 x GPIO (8-bits), 4 x USB 3.0 and 2 x USB 2.0 ports to work with different peripherals of devices and M.2 2280 M-Key / 2230 E-Key for expansion.
| Dimension | 178W x 125D x 52.7H (mm) |
| CPU |
Intel® Core™ i3-7100U Processor 14nm, 2 cores, 4 threads, up to 2.4 GHz TDP 15W 3 MB SmartCache |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Dual channel memory architecture Support DDR 2133MHz |
| Ethernet | 2 x GbE LAN ports (Intel® i219V and Intel® i211AT) |
| Graphic Support | Integrated Graphics Processor - Intel® HD Graphics 620: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expasion slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

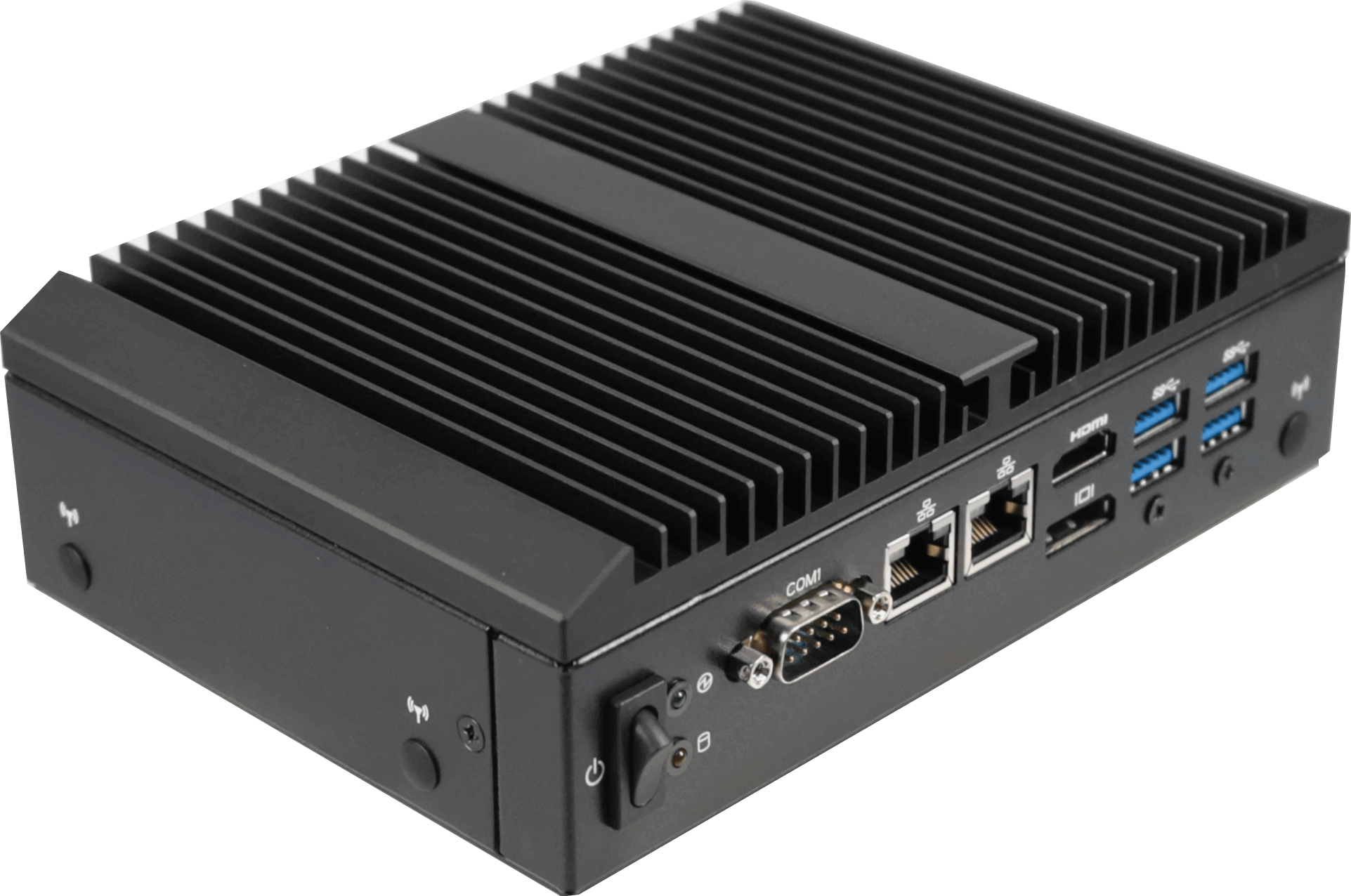

| Front I/O | 2 x RJ45 LAN ports 4 x USB 3.0 1 x HDMI 1 x Display Port 1 x Power switch 1 x Power & HDD LED 1 x COM port (RS-422/485/232 and RI/5V/12V) |

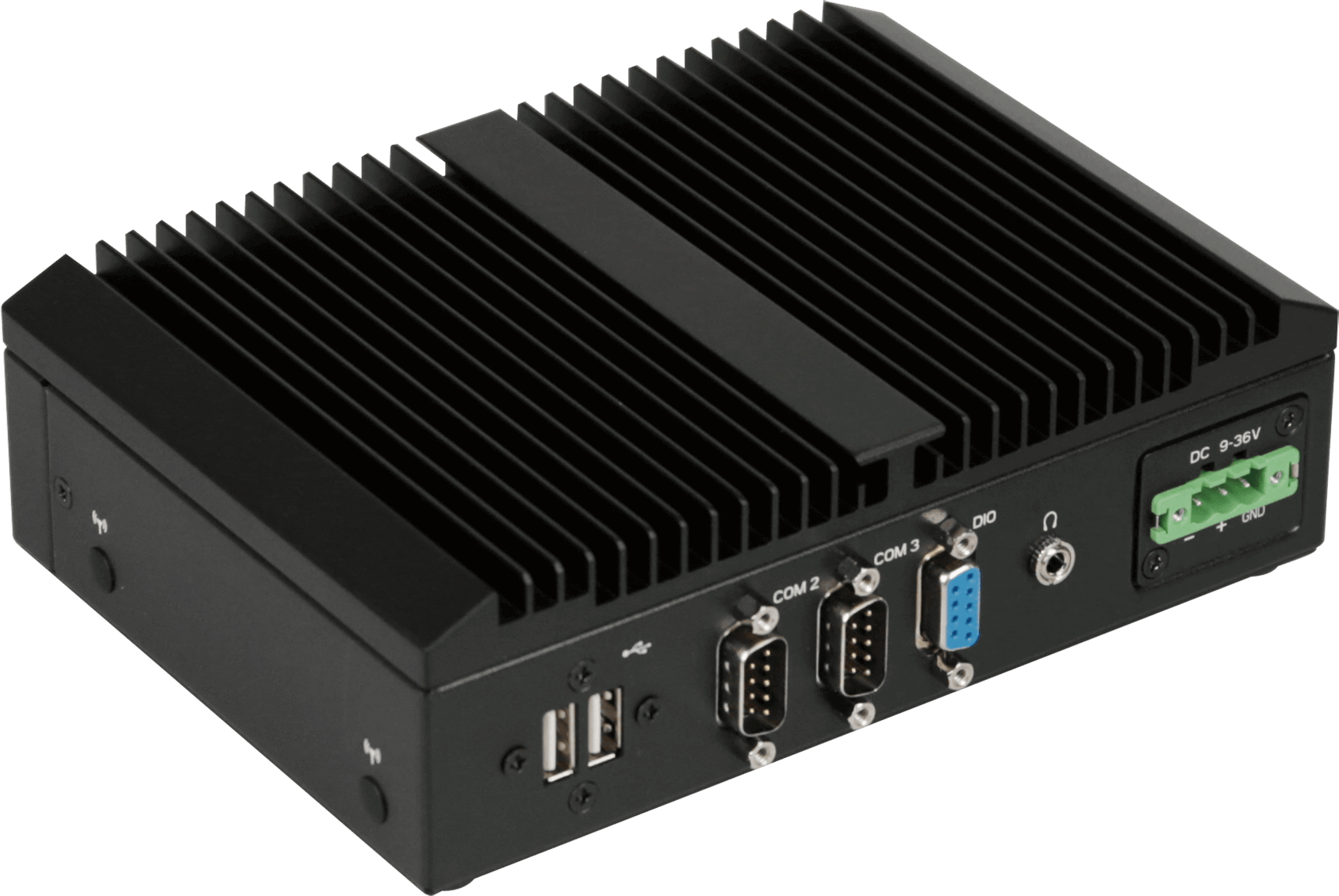

| Rear I/O | 2 x USB2.0 2 x COM Ports (RS-232) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x 3-pin Terminal Block |
| Side I/O | 2 x External Antenna Hole (Optional) |
| Power | +9~36VDC (Full Range) |
| Operating temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With
SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, with SSD |
| Packaging Content | Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) Content: SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) THERMAL PAD x 2 (P/N: 25ST3-200052-T5R) THERMAL PAD x 1 (P/N: 25ST3-200053-T5R) THERMAL PAD x 1 (P/N: 25ST3-200051-T5R) CABLE SATA x 1 (P/N: 25CF4-070020-S9R) TERMINAL BLOCKS MALE PLUG x 1 (P/N: 25IO0-5ESDV0-D2R) |
| Mounting | Wall mount (Optional) |
| Optional kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
| Order information | 6BQP7100BMR-SI (Box packing) |
