| System Size: 234W x 155D x 30H (mm) |
| AMD RYZEN V1605B Embedded Processor |
| Dual Channel DDR4, 2 x SO-DIMMs |
| 4 x HDMI 2.0 for multiple displays |
| KIOSK / POS |
| Digital Signage |
| Menu Board / Video Wall |
a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.
QBiX-Lite SDM Kits is one of the product line to be integrated with GIGAIPC 3.5" SBC (QBiP-1605A), it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel vertically or horizontally, based on your product design. With powerful AMD Ryzen™ V1605B Embedded Processor, it provides up to 4 independent display outputs of 4K resolutions with high computing performance and stability. It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure.
| Dimension | 234W x 155D x 30H (mm) |
| CPU |
AMD Ryzen™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz TDP 25W 2MB of shared L2 plus 4MB of shared L3 total |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2133MHz memory modules |
| Ethernet | 2 x GbE LAN ports (Realtek® RTL8111HS) |
| Graphic Support | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz *Support EDID emulation with AMD graphic driver/utility |
| Audio | Realtek® Audio Codec |
| Storage | 1 x 2.5" HDD/SSD (SATA 6 Gb/s) |
| Expasion slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Front I/O | 2 x RJ45 LAN ports 2 x USB3.0 2 x USB2.0 4 x HDMI 1 x Power button with LED 1 x HDD LED 1 x Screw type DC Jack |

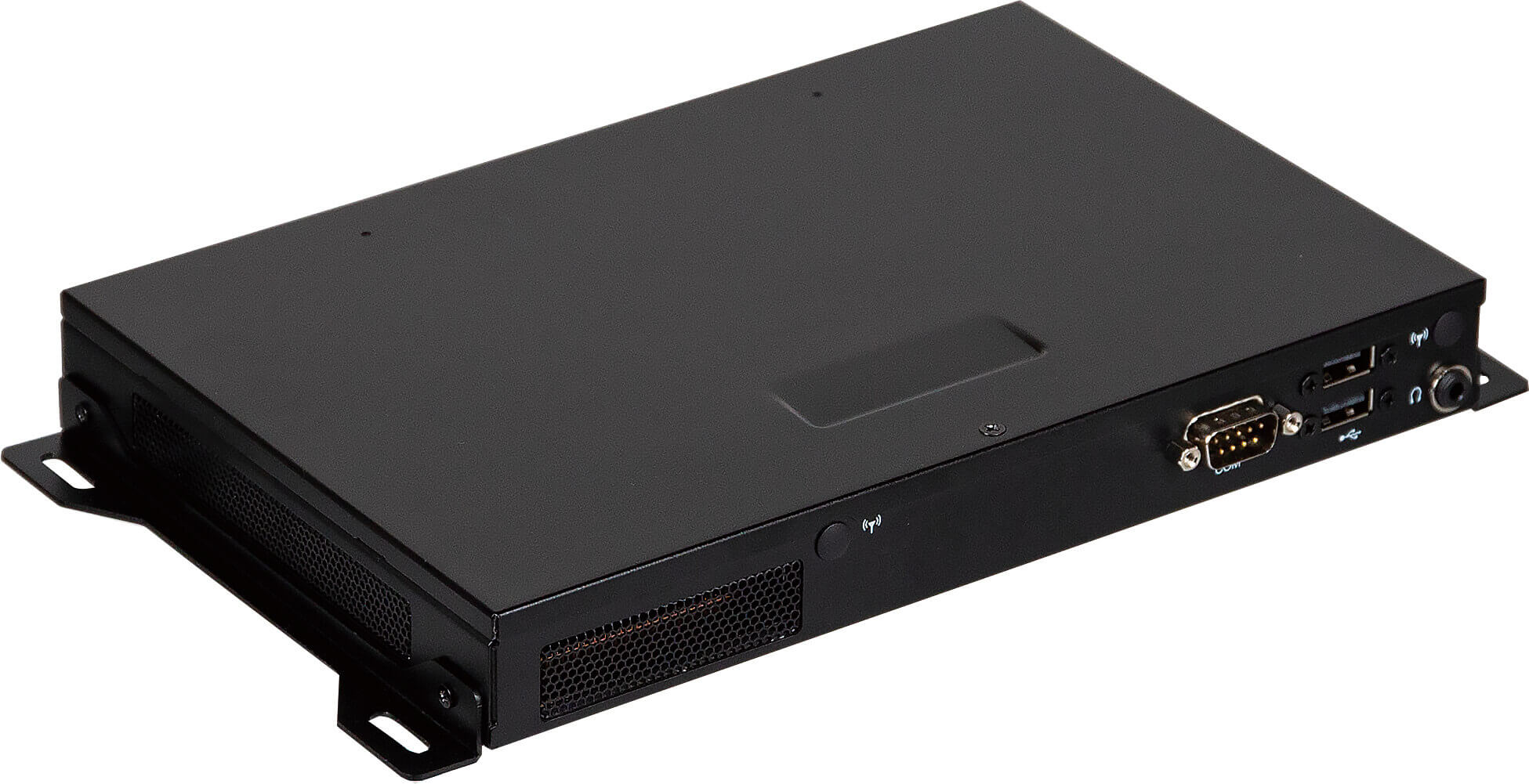

| Rear I/O | 1 x COM (RS-232/422/485 & RI/5V/12V) 2 x USB 2.0 1 x Line out phone jack 2 x External Antenna Hole (Optional) |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9665TT2.0 |
| Power | +12V~24VDC (Adapter 19V/65W) |
| Operating temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With
SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Box Packing Capacity: 10 Carton size: 25AC0-400000-Y1R (464x376x367mm) Content: Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R PSU ADP 19V 65W 100-240VAC x 1 : 25EP2-10065Q-A3S Power Cord : Optional (by region) |
| Mounting | Wall mount (Default) VESA 75/100 (Optional) |
| Order information | 6BQL1605AMR-SI (Box packing) |
